終於OTA的升級過程的詳解來了,之前的兩篇文章與主要是鋪墊,

OTA升級的一些基礎知識,那這邊文章就開始揭開OTA-recovery模式升級過程的神秘面紗,需要說明的是

以下重點梳理了本人認為的關鍵、核心的流程,其他如ui部分、簽名校驗部分我並未花筆墨去描述,主要

還是講升級的核心,其他都是枝枝恭弘=叶 恭弘恭弘=叶 恭弘。Android 10 recovery源碼分析,代碼來源路徑:

https://www.androidos.net.cn/android/10.0.0_r6/xref

本文所講的流程代碼路徑為:bootable/recovery/

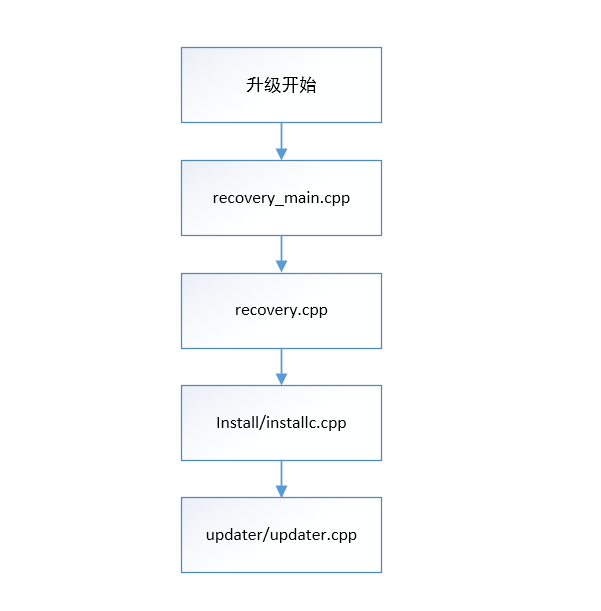

首先從文件層面說下升級功能的調用流程,說明如下:

recovery-main.cpp      升級的主入口

recovery.cpp                開始recovery升級的處理流程

install/install.cpp         執行升級的處理流程(調用updater)

updater/updater.cpp  完成升級的核心流程







1 主入口代碼為:recovery-main.cpp,main入口

1.1 日誌相關的工作準備



 1 // We don't have logcat yet under recovery; so we'll print error on screen and log to stdout
 2 // (which is redirected to recovery.log) as we used to do.
 3 android::base::InitLogging(argv, &UiLogger);
 4
 5 // Take last pmsg contents and rewrite it to the current pmsg session.
 6 static constexpr const char filter[] = "recovery/";
 7 // Do we need to rotate?
 8 bool do_rotate = false;
 9
10 __android_log_pmsg_file_read(LOG_ID_SYSTEM, ANDROID_LOG_INFO, filter, logbasename, &do_rotate);
11 // Take action to refresh pmsg contents
12 __android_log_pmsg_file_read(LOG_ID_SYSTEM, ANDROID_LOG_INFO, filter, logrotate, &do_rotate);
13
14 time_t start = time(nullptr);
15
16 // redirect_stdio should be called only in non-sideload mode. Otherwise we may have two logger
17 // instances with different timestamps.
18 redirect_stdio(Paths::Get().temporary_log_file().c_str());

1.2 load_volume_table(); 加載系統分區信息,注意這裏並明白掛載分區

.mount_point = “/tmp”, .fs_type = “ramdisk”, .blk_device = “ramdisk”, .length = 0

mount_point — 掛載點    fs_type — 分區類型

blk_device     — 設備塊名 length  — 分區大小

1.3 掛載/cache分區,我們的升級命令都放在這個分區下

1 has_cache = volume_for_mount_point(CACHE_ROOT) != nullptr;

1.4 獲取升級的參數並寫BCB塊信息

std::vector<std::string> args = get_args(argc, argv);

if (!update_bootloader_message(options, &err)) {
    LOG(ERROR) << "Failed to set BCB message: " << err;
}

a、讀取misc分區分區,並將recovery模式升級的標記寫到misc分區中,這樣做的目的是斷電續升,

升級中掉電之後,如果下次開機重啟,在bootloader中會讀取此標記,並重新進入到recovery模式中

update_bootloader_message函數完成此功能。

b、從/cache/recovery/command 中讀取升級參數,這裏recovery啟動進程是未帶入參數時,command

文件的接口其實有很詳細的解釋

 * The arguments which may be supplied in the recovery.command file:
 *   --update_package=path - verify install an OTA package file
 *   --wipe_data - erase user data (and cache), then reboot
 *   --prompt_and_wipe_data - prompt the user that data is corrupt, with their consent erase user
 *       data (and cache), then reboot
 *   --wipe_cache - wipe cache (but not user data), then reboot
 *   --show_text - show the recovery text menu, used by some bootloader (e.g. http://b/36872519).
 *   --set_encrypted_filesystem=on|off - enables / diasables encrypted fs
 *   --just_exit - do nothing; exit and reboot

1.5 加載recovery_ui_ext.so,完成升級中與屏幕信息的显示,升級進度,升級結果等。這裏就不多說了。

static constexpr const char* kDefaultLibRecoveryUIExt = "librecovery_ui_ext.so";
  // Intentionally not calling dlclose(3) to avoid potential gotchas (e.g. `make_device` may have
  // handed out pointers to code or static [or thread-local] data and doesn't collect them all back
  // in on dlclose).
  void* librecovery_ui_ext = dlopen(kDefaultLibRecoveryUIExt, RTLD_NOW);

  using MakeDeviceType = decltype(&make_device);
  MakeDeviceType make_device_func = nullptr;
  if (librecovery_ui_ext == nullptr) {
    printf("Failed to dlopen %s: %s\n", kDefaultLibRecoveryUIExt, dlerror());
  } else {
    reinterpret_cast<void*&>(make_device_func) = dlsym(librecovery_ui_ext, "make_device");
    if (make_device_func == nullptr) {
      printf("Failed to dlsym make_device: %s\n", dlerror());
    }
  }

1.6 非fastboot模式升級就開始了recovery模式升級,start_recovery

ret = fastboot ? StartFastboot(device, args) : start_recovery(device, args);

2 進入 recovery.cpp

2.1 參數解析,這些參數其實就是來源於/cache/recovery/command, 上面已經通過get_arg,

讀取到了args中

2.2 界面的各種ui信息显示,點事電量的檢查等待輔助動作。

2.3 函數名為安裝升級包,其實還未真正開始進行升級包的安裝

1 status = install_package(update_package, should_wipe_cache, true, retry_count, ui);

2.4 安裝結束之後由finish_recovery()完成收尾工作,保存日誌、清除BCB中的標記,設備重啟。

 1 static void finish_recovery() {
 2   std::string locale = ui->GetLocale();
 3   // Save the locale to cache, so if recovery is next started up without a '--locale' argument
 4   // (e.g., directly from the bootloader) it will use the last-known locale.
 5   if (!locale.empty() && has_cache) {
 6     LOG(INFO) << "Saving locale \"" << locale << "\"";
 7     if (ensure_path_mounted(LOCALE_FILE) != 0) {
 8       LOG(ERROR) << "Failed to mount " << LOCALE_FILE;
 9     } else if (!android::base::WriteStringToFile(locale, LOCALE_FILE)) {
10       PLOG(ERROR) << "Failed to save locale to " << LOCALE_FILE;
11     }
12   }
13
14   copy_logs(save_current_log, has_cache, sehandle);
15
16   // Reset to normal system boot so recovery won't cycle indefinitely.
17   std::string err;
18   if (!clear_bootloader_message(&err)) {
19     LOG(ERROR) << "Failed to clear BCB message: " << err;
20   }
21
22   // Remove the command file, so recovery won't repeat indefinitely.
23   if (has_cache) {
24     if (ensure_path_mounted(COMMAND_FILE) != 0 || (unlink(COMMAND_FILE) && errno != ENOENT)) {
25       LOG(WARNING) << "Can't unlink " << COMMAND_FILE;
26     }
27     ensure_path_unmounted(CACHE_ROOT);
28   }
29
30   sync();  // For good measure.
31 }

3 install/install.cpp

3.1 install.cpp其實就進入了安裝升級包的準備動作,剛上的install_package,是假的,這裏才是

really_install_package

1 really_install_package(path, &updater_wipe_cache, needs_mount, &log_buffer,
2                                     retry_count, &max_temperature, ui);

3.2 really_install_package 關鍵地方已加註釋

 1 static int really_install_package(const std::string& path, bool* wipe_cache, bool needs_mount,
 2                                   std::vector<std::string>* log_buffer, int retry_count,
 3                                   int* max_temperature, RecoveryUI* ui) {
 4   ui->SetBackground(RecoveryUI::INSTALLING_UPDATE);
 5   ui->Print("Finding update package...\n");
 6   // Give verification half the progress bar...
 7   ui->SetProgressType(RecoveryUI::DETERMINATE);
 8   ui->ShowProgress(VERIFICATION_PROGRESS_FRACTION, VERIFICATION_PROGRESS_TIME);
 9   LOG(INFO) << "Update location: " << path;
10
11   // Map the update package into memory.
12   ui->Print("Opening update package...\n");
13
14   if (needs_mount) {
15     if (path[0] == '@') {
16       ensure_path_mounted(path.substr(1));
17     } else {
18       ensure_path_mounted(path);
19     }
20   }
21
22   /* 將zip映射到內存中 */
23   auto package = Package::CreateMemoryPackage(
24       path, std::bind(&RecoveryUI::SetProgress, ui, std::placeholders::_1));
25   if (!package) {
26     log_buffer->push_back(android::base::StringPrintf("error: %d", kMapFileFailure));
27     return INSTALL_CORRUPT;
28   }
29
30   // Verify package.進行zip包進行簽名校驗
31   if (!verify_package(package.get(), ui)) {
32     log_buffer->push_back(android::base::StringPrintf("error: %d", kZipVerificationFailure));
33     return INSTALL_CORRUPT;
34   }
35
36   // Try to open the package.打開zip包
37   ZipArchiveHandle zip = package->GetZipArchiveHandle();
38   if (!zip) {
39     log_buffer->push_back(android::base::StringPrintf("error: %d", kZipOpenFailure));
40     return INSTALL_CORRUPT;
41   }
42
43   // Additionally verify the compatibility of the package if it's a fresh install.
44   if (retry_count == 0 && !verify_package_compatibility(zip)) {
45     log_buffer->push_back(android::base::StringPrintf("error: %d", kPackageCompatibilityFailure));
46     return INSTALL_CORRUPT;
47   }
48
49   // Verify and install the contents of the package.
50   ui->Print("Installing update...\n");
51   if (retry_count > 0) {
52     ui->Print("Retry attempt: %d\n", retry_count);
53   }
54   ui->SetEnableReboot(false);
55   int result =
56       /* 執行升級updater進程進行升級 */
57       try_update_binary(path, zip, wipe_cache, log_buffer, retry_count, max_temperature, ui);
58   ui->SetEnableReboot(true);
59   ui->Print("\n");
60
61   return result;
62 }

3.3 try_update_binary

從升級包中讀取元數據信息

1 ReadMetadataFromPackage(zip, &metadata)

3.4 從升級包中讀取updater進程

 1 int SetUpNonAbUpdateCommands(const std::string& package, ZipArchiveHandle zip, int retry_count,
 2                              int status_fd, std::vector<std::string>* cmd) {
 3   CHECK(cmd != nullptr);
 4
 5   // In non-A/B updates we extract the update binary from the package.
 6   static constexpr const char* UPDATE_BINARY_NAME = "META-INF/com/google/android/update-binary";
 7   ZipString binary_name(UPDATE_BINARY_NAME);
 8   ZipEntry binary_entry;
 9   if (FindEntry(zip, binary_name, &binary_entry) != 0) {
10     LOG(ERROR) << "Failed to find update binary " << UPDATE_BINARY_NAME;
11     return INSTALL_CORRUPT;
12   }
13
14   const std::string binary_path = Paths::Get().temporary_update_binary();
15   unlink(binary_path.c_str());
16   android::base::unique_fd fd(
17       open(binary_path.c_str(), O_CREAT | O_WRONLY | O_TRUNC | O_CLOEXEC, 0755));
18   if (fd == -1) {
19     PLOG(ERROR) << "Failed to create " << binary_path;
20     return INSTALL_ERROR;
21   }
22
23   int32_t error = ExtractEntryToFile(zip, &binary_entry, fd);
24   if (error != 0) {
25     LOG(ERROR) << "Failed to extract " << UPDATE_BINARY_NAME << ": " << ErrorCodeString(error);
26     return INSTALL_ERROR;
27   }
28
29   // When executing the update binary contained in the package, the arguments passed are:
30   //   - the version number for this interface
31   //   - an FD to which the program can write in order to update the progress bar.
32   //   - the name of the package zip file.
33   //   - an optional argument "retry" if this update is a retry of a failed update attempt.
34   *cmd = {
35     binary_path,
36     std::to_string(kRecoveryApiVersion),
37     std::to_string(status_fd),
38     package,
39   };
40   if (retry_count > 0) {
41     cmd->push_back("retry");
42   }
43   return 0;
44 }

3.5 創建管道,這裏子進程關閉了讀端,父進程關閉了寫端,這樣就是保證從單向的信息通信,從

子進程傳入信息到父進程中。

1 android::base::Pipe(&pipe_read, &pipe_write, 0)

3.6 創建子進程,在子進程中運行update-binary進程

 1 if (pid == 0) {
 2     umask(022);
 3     pipe_read.reset();
 4
 5     // Convert the std::string vector to a NULL-terminated char* vector suitable for execv.
 6     auto chr_args = StringVectorToNullTerminatedArray(args);
 7     /* chr_args[0] 其實就是升級包中的 META-INF/com/google/android/update-binary */
 8     execv(chr_args[0], chr_args.data());
 9     // We shouldn't use LOG/PLOG in the forked process, since they may cause the child process to
10     // hang. This deadlock results from an improperly copied mutex in the ui functions.
11     // (Bug: 34769056)
12     fprintf(stdout, "E:Can't run %s (%s)\n", chr_args[0], strerror(errno));
13     _exit(EXIT_FAILURE);
14   }

3.7 recovery獲取子進程的信息並显示,進度、ui_print 等等。

1 FILE* from_child = android::base::Fdopen(std::move(pipe_read), "r");
2 while (fgets(buffer, sizeof(buffer), from_child) != nullptr)

4 execv執行升級進程之後,工作在updater/updater.cpp中完成。

4.1 這裏的主要核心就是構造腳本解析器對updater-script中的命令進行執行,至於這個腳本解析器

是如何構造的,如何執行的, 其實我也搞的不是很清楚。

4.2 安裝升級包的核心程序就是Configure edify’s functions. 中的那些註冊回調函數

  1 int main(int argc, char** argv) {
  2 // Various things log information to stdout or stderr more or less
  3 // at random (though we've tried to standardize on stdout).  The
  4 // log file makes more sense if buffering is turned off so things
  5 // appear in the right order.
  6   setbuf(stdout, nullptr);
  7   setbuf(stderr, nullptr);
  8 // We don't have logcat yet under recovery. Update logs will always be written to stdout
  9 // (which is redirected to recovery.log).
 10   android::base::InitLogging(argv, &UpdaterLogger);
 11 if (argc != 4 && argc != 5) {
 12     LOG(ERROR) << "unexpected number of arguments: " << argc;
 13 return 1;
 14   }
 15 /* 支持的版本檢查 */
 16 char* version = argv[1];
 17 if ((version[0] != '1' && version[0] != '2' && version[0] != '3') || version[1] != '\0') {
 18 // We support version 1, 2, or 3.
 19     LOG(ERROR) << "wrong updater binary API; expected 1, 2, or 3; got " << argv[1];
 20 return 2;
 21   }
 22 // Set up the pipe for sending commands back to the parent process.
 23 int fd = atoi(argv[2]);
 24   FILE* cmd_pipe = fdopen(fd, "wb");
 25   setlinebuf(cmd_pipe);
 26 // Extract the script from the package.
 27 /* 從包中提取腳本 */
 28 const char* package_filename = argv[3];
 29   MemMapping map;
 30 if (!map.MapFile(package_filename)) {
 31     LOG(ERROR) << "failed to map package " << argv[3];
 32 return 3;
 33   }
 34   ZipArchiveHandle za;
 35 int open_err = OpenArchiveFromMemory(map.addr, map.length, argv[3], &za);
 36 if (open_err != 0) {
 37     LOG(ERROR) << "failed to open package " << argv[3] << ": " << ErrorCodeString(open_err);
 38     CloseArchive(za);
 39 return 3;
 40   }
 41 ZipString script_name(SCRIPT_NAME);
 42   ZipEntry script_entry;
 43 int find_err = FindEntry(za, script_name, &script_entry);
 44 if (find_err != 0) {
 45     LOG(ERROR) << "failed to find " << SCRIPT_NAME << " in " << package_filename << ": "
 46                << ErrorCodeString(find_err);
 47     CloseArchive(za);
 48 return 4;
 49   }
 50 std::string script;
 51   script.resize(script_entry.uncompressed_length);
 52 int extract_err = ExtractToMemory(za, &script_entry, reinterpret_cast<uint8_t*>(&script[0]),
 53                                     script_entry.uncompressed_length);
 54 if (extract_err != 0) {
 55     LOG(ERROR) << "failed to read script from package: " << ErrorCodeString(extract_err);
 56     CloseArchive(za);
 57 return 5;
 58   }
 59 // Configure edify's functions.
 60 /* 註冊updater-script中的回調函數 這裏主要是一些斷言函數 abort assert*/
 61   RegisterBuiltins();
 62 /* 這裏主要是一些安裝升級包的函數 主要是對有文件系統的分區來說*/
 63   RegisterInstallFunctions();
 64 /* 這裏主要註冊對裸分區進行升級的函數 */
 65   RegisterBlockImageFunctions();
 66   RegisterDynamicPartitionsFunctions();
 67   RegisterDeviceExtensions();
 68 // Parse the script.
 69 std::unique_ptr<Expr> root;
 70 int error_count = 0;
 71 int error = ParseString(script, &root, &error_count);
 72 if (error != 0 || error_count > 0) {
 73     LOG(ERROR) << error_count << " parse errors";
 74     CloseArchive(za);
 75 return 6;
 76   }
 77   sehandle = selinux_android_file_context_handle();
 78   selinux_android_set_sehandle(sehandle);
 79 if (!sehandle) {
 80 fprintf(cmd_pipe, "ui_print Warning: No file_contexts\n");
 81   }
 82 // Evaluate the parsed script.
 83   UpdaterInfo updater_info;
 84   updater_info.cmd_pipe = cmd_pipe;
 85   updater_info.package_zip = za;
 86   updater_info.version = atoi(version);
 87   updater_info.package_zip_addr = map.addr;
 88   updater_info.package_zip_len = map.length;
 89 State state(script, &updater_info);
 90 if (argc == 5) {
 91 if (strcmp(argv[4], "retry") == 0) {
 92       state.is_retry = true;
 93     } else {
 94 printf("unexpected argument: %s", argv[4]);
 95     }
 96   }
 97 std::string result;
 98 bool status = Evaluate(&state, root, &result);
 99 if (!status) {
100 if (state.errmsg.empty()) {
101       LOG(ERROR) << "script aborted (no error message)";
102 fprintf(cmd_pipe, "ui_print script aborted (no error message)\n");
103     } else {
104       LOG(ERROR) << "script aborted: " << state.errmsg;
105 const std::vector<std::string> lines = android::base::Split(state.errmsg, "\n");
106 for (const std::string& line : lines) {
107 // Parse the error code in abort message.
108 // Example: "E30: This package is for bullhead devices."
109 if (!line.empty() && line[0] == 'E') {
110 if (sscanf(line.c_str(), "E%d: ", &state.error_code) != 1) {
111             LOG(ERROR) << "Failed to parse error code: [" << line << "]";
112           }
113         }
114 fprintf(cmd_pipe, "ui_print %s\n", line.c_str());
115       }
116     }
117 // Installation has been aborted. Set the error code to kScriptExecutionFailure unless
118 // a more specific code has been set in errmsg.
119 if (state.error_code == kNoError) {
120       state.error_code = kScriptExecutionFailure;
121     }
122 fprintf(cmd_pipe, "log error: %d\n", state.error_code);
123 // Cause code should provide additional information about the abort.
124 if (state.cause_code != kNoCause) {
125 fprintf(cmd_pipe, "log cause: %d\n", state.cause_code);
126 if (state.cause_code == kPatchApplicationFailure) {
127         LOG(INFO) << "Patch application failed, retry update.";
128 fprintf(cmd_pipe, "retry_update\n");
129       } else if (state.cause_code == kEioFailure) {
130         LOG(INFO) << "Update failed due to EIO, retry update.";
131 fprintf(cmd_pipe, "retry_update\n");
132       }
133     }
134 if (updater_info.package_zip) {
135       CloseArchive(updater_info.package_zip);
136     }
137 return 7;
138   } else {
139 fprintf(cmd_pipe, "ui_print script succeeded: result was [%s]\n", result.c_str());
140   }
141 if (updater_info.package_zip) {
142     CloseArchive(updater_info.package_zip);
143   }
144 return 0;
145 }

以上就是基於Android的OTARecovery模式升級流程。我這裏主要是梳理整個升級流程的主要,

很多地方還是寫的不夠細,望讀者理解,我認為比較核心與關鍵的地方有以下幾點吧

  • 主系統與recovery升級系統,升級消息的傳遞通過cache;
  • BCB塊中寫信息來保證斷電續升;
  • 主系統中fork子進程進行升級進程的執行,並通過pipe管道進行信息交互;
  • updater中使用命令與執行的分離,命令在updater-script中,執行在update-binary中;
    • 升級程序通過升級包帶入的,那麼核心升級流程是每次都有機會變更或者優化的,
    • 這樣就比那些將升級流程預置在系統中的要靈活的很多;









        長按二維碼關注【嵌入式C部落】,獲取更多編程資料及精華文章



本站聲明:網站內容來源於博客園,如有侵權,請聯繫我們,我們將及時處理

【其他文章推薦】

※如何讓商品強力曝光呢? 網頁設計公司幫您建置最吸引人的網站,提高曝光率!!

網頁設計一頭霧水??該從何著手呢? 找到專業技術的網頁設計公司,幫您輕鬆架站!

※想知道最厲害的台北網頁設計公司推薦台中網頁設計公司推薦專業設計師”嚨底家”!!
